Vertex standard vx-2200 vhf 136-174MHZ mobile radio

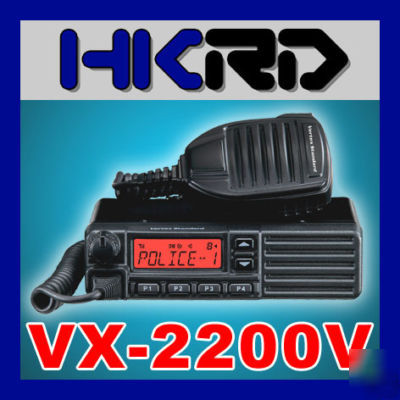

Vertex Standard VX-2200V (136-174MHz)
VHF Mobile Transceiver / Radio
VX-2200 (128-channel) series mobiles are full featured FM transceivers designed for flexible
mobile business communications in the VHF or UHF Land Mobile Radio bands. These transceivers are designed for reliable
business communications in a wide variety of applications with a wide range of operating capability provided by their
leading-edge design with high output power (50 Watts VHF/45 Watts UHF). The VX-2200 mobiles have an eight character
alpha-numeric display to manage the 128 channel capacity.
13.6V DC Cable Pigtail with Connector
128 Channel Capacity VX-2200
For easy of operation the 8-channel VX-2100 is your workhorse radio. For larger systems, the VX-2200 gives you 128 channels to get the job done.
Power Output: 50 Watts (VHF)
With 50 watts output on VHF, the VX-2200 have the power to get your message through.
Wide Band Coverage (VHF 134-174 MHz)
The VX-2200 continue with our efforts to give you the maximum flexibility possible with ultra-wide band coverage.
The front facing speaker and 4 Watts of audio power gives you plenty of receiver audio even in noisy environments.
The VX-2200 mobiles have plenty of built-in signaling to offer. Besides the standard CTCSS and DCS subaudible signaling, these mobiles also include 2-tone encode and decode, DTMF ANI and 5-tone encode and decode.
Excellent for school bus drivers, delivery vans, or any other application where you do not want the driver to be on their own . With the built-in Emergency feature, a silent alarm can be sent and transmit live audio to the dispatcher.
Connecting outboard devices is easy using the rear mounted 15 pin accessory connector.
Optional Signaling Features
DTMF decode paging is available with the FVP-25. The FVP-25 also includes a simple inversion scrambler. The FVP-35 offers rolling code type encryption. The VME-100 board gives you MDC-1200 (and GE-Star ) encode feature to operate in existing systems.
The VX-2200's circuitry is housed within a die-cast aluminum enclosure, which doubles as a heat sink. This extraordinarily durable construction ensures many years of reliable operation, even in highvibration installations.
MIL-Spec Rated (MIL 810 C/D/E/F)
The ultra-rugged design of the VX-2200 enables it to be fully compliant with the exacting specifications of MIL 810 C/D/E/F, pursuant to the test procedures documented below.
TX: 11 A, RX: 2.5 A, Standby: 250 mA
Internal: 4 W @ 18 , 5 % THD
External: 12 W @ 4 , 5 % THD
Specification may be changed without notification.
Accessories of VX-2200 series (Not included)
There are accessories of VX-2200 series. Please contact us if you are interested. We will list them per your request.
