> Bell 610 gaussmeter, includes probe works great

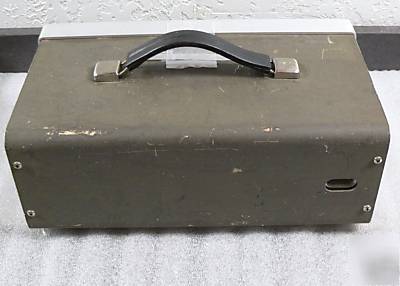

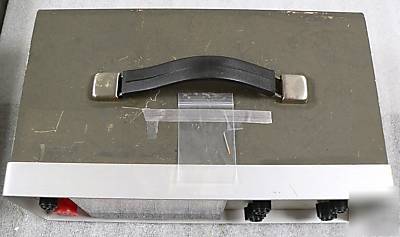

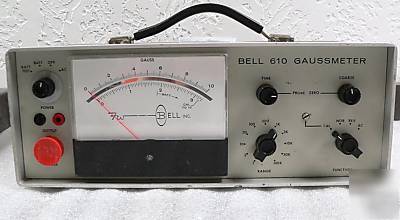

Bell 610 gaussmeter, includes probe works great
F.W. BELL 610 GAUSSMETER, INCLUDES PIN !!

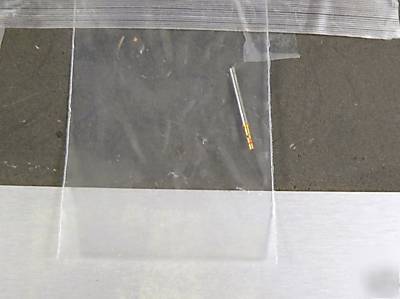

Probe is Included but Not Shown - Please ask if you would like to see a picture of the Probe - It is in Great Condition
* Self-Calibrating Probes (built-in calibration reference)
* Direct ac and dc Field Readout
* AC Line and Battery Operation
* Tachometers, magnets, pm motors
* Relays, solenoids, T.V. deflection coils
* Magnetic transducers, loudspeakers
* Testing, sorting, classifying magnets
* Nondestructive testing by remenance flux
* Switches using magnetic arc blow out
* Traveling wave tube testing
* Thermostats, pressure controls, voltage regulators
* Meters, magnetic chucks, quality sampling
* Field Ranges: 11 ranges, nonduplicating, from 1.0 G (10-4 tesla) FS to 100 kG (10 tesla) FS
* Field measurements to 100 kG with high field Probes only
* Meter Readout: Direct reading of dc static flux density and RMS value of ac fields (sine wave 10 to 2,000 Hz)
* Output: Calibrated dc voltage of 100 mV FS is available at output jacks on front panel. Output impedance is approximately 10 kW. AC fields up to 2,000 Hz can be displayed and measured at the output jacks using an oscilloscope or external indicator
* Power Supply: AC line operation 115/230 V, 50/60 Hz; Internal battery (12 V dry battery, Neda 926 - Eveready 732 or equivalent) furnished as optional accessory
For more information on this product, please contact Bryce and/or ****@infowest.com / ****@testequipmentalley.com435.635.3352 tel.435.635.3298 fax.
