Sencore auto tracker SC3100 100 mhz oscilloscope

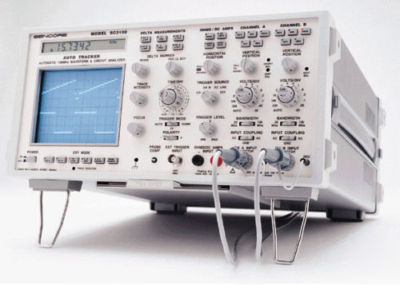

Sencore SC3100 "Auto Tracker" Automatic 100 MHz Waveform & Circuit Analyzer
* Electrical Requirements: 105 125 Volts AC, 50/60 Hz
* New Retail Price: $3,295.00
* Measure DC voltage, peak-to-peak voltage, frequency, DC current, ohms, continuity - and analyze waveforms up to 100 MHz in one complete, easy-to-use instrument. The autoranged time base and vertical attenuators, the SC3100 "Auto Tracker" lets you view signals without resetting controls. With an input capability from 2 mV to 2 kV, the "Auto Tracker" can handle any signal you need to measure. The "fiddle free" sync circuits give you hands-free analyzing all the way from sine waves to video waveforms. The Delta features let you analyze any portion of the waveform without counting graticules.
* Exclusive autoranged time base and vertical attenuators eliminate wasted time
* Auto-Tracking digital readout of waveform voltage and frequency with one probe connection
* Vertical Amplifiers DISPLAY MODES: Channel A, inverted Channel A (-A), Channel B, dual trace (A&B), algebraic sum (A+B) or difference (B-A), vector (X-Y), CALIBRATION ACCURACY: 3% at 1 kHz, FREQUENCY RESPONSE (100 MHz): AC coupled: 3 dB of 1 kHz level from 10 Hz to 100 MHz, usable to 150 MHz, SENSITIVITY: 20 mV/div. to 200 V/div. with supplied 39G292 10X probe; 2 mV/div. to 20 V/div. with (optional) DP270 Direct Probe, MAXIMUM INPUT PROTECTION: Supplied 39G292 10X Probe: 2500 volts breakdown (DC + Peak AC)
* Horizontal Sweep: SWEEP RATES: 100 milliseconds/division to 20 nanosecond/division. Autorange automatically selects sweep rate to show approximately 2-5 cycles of waveform. ACCURACY: 3%
* Trigger Circuits: TRIGGER SOURCE: Ch A, Ch B, AC power line, or external, TRIGGER MODES: Norm, Auto, TV
* Auto-Tracking Digital Tests - DC Volts: DCV FUNCTION: Provides direct reading of DC voltage on selected channel, ACCURACY: 5% 2 digits
* Peak-to-Peak Volts: VPP FUNCTION: Provides direct reading of peak-to-peak voltage on selected channel with either X10 or direct probes, ACCURACY: 2% 4 counts, FREQUENCY RESPONSE: 0.5 dB from 20 Hz to 30 MHz, less than or equal to -3 dB at 100 MHz
* AC Volts: ACV FUNCTION: Calculates RMS sinewave value from PPV measurement; dBm FUNCTION: Calculates dBm measurement from PPV sinewave measurement, referencing 1 mW across 600 Ohms (0 dBm = .7746 volts RMS)
* Frequency: Automatically displays the frequency of the signal on selected channel; RANGES: 10.00 Hz to 150 MHz; ACCURACY: 0.001% 1 digit
* Delta Peak-to-Peak: Measures amplitude of intensified area on selected channel
* Delta Time: Measures time of intensified waveform portion
* 1/Delta Time: Converts Delta Time reading to equivalent frequency
* Delta DC Volts: FUNCTION: Measures DC voltage level of marked waveform point in respect to ground using the PPV and DCV functions; MARKER: Fully adjustable over entire range of waveform
* Digital Meter Tests: Ohms FUNCTION: Provides in- or out-of-circuit ohms; RANGES: 0.00 to 100 M Ohms; ACCURACY: 0.2% 2 digits
* Continuity Test: Provides audible tone of continuity; RANGE: 0 to 199 Ohms. Audible tone turns on if resistance is less than 10 Ohms and turns off if resistance is greater than 15 Ohms, 2 Ohms
* DC Current: Provides measurement of DC current; RANGES: 0.001 to 1.99 Amp; ACCURACY: 0.3% 2 digits
* Dimensions: 7.25 x 13.75 x 15 inches (18.4 x 34.9 x 38.1 cm)
