1 hf rfid reader/writer 14443 a usb,1 module uart,3 tag
1 pc Mifare Rfid Reader/Writer USB Interface YHY632AU+1 PC Mifare Reader/Writer Easy-Electronic Board UART(TTL RS232) YHY522 +3 Cards
Rm 605 Tower 6 Qingyuan-Xili Long Gang Rd.,
Haidian District Beijing 100192,
Eml:sale_susan@ehuoyan.cn; ****@ehuoyan.com
ISO14443A /MIFARE ,Mifare Classic1K,Mifare Classic 4K
Complete Read/Write module with built-in transceiver antenna
Contactless operating frequency 13.56 MHz
Auto checks for presence of tags and output interrupt information
Auto read/write data from RFID tag
Auto operate value from epurse
Easy LOCK/UNLOCK function to protect RFID information
RS232(TTL) Interface, baud rate up to 230400bps
Fast data transfer Contactless communication up to 106KHz
Secure Encrypted contactless communication
Ideal for emoney, secure access and fast data collection applications
Typical Operating Distance: 0 - 60 mm
Operating Voltage DC 2.7-3.6 V
1 LED indicator, 3 I/O pins for external use
Read and write contactless smart cards
Mifare_One (S50&S70)/ UltraLight / Mifare_ProX;
Typical time to read and write cards
up to 5 - 9cm (for ISO card size)
Two LED indicators (software controlled)
Built-in (software controlled)
The datasheet of product please download from http:// /download/module//DS_YHY522_EN.pdf
http:// /download/reader//DS_YHY632A_en_v3.pdf

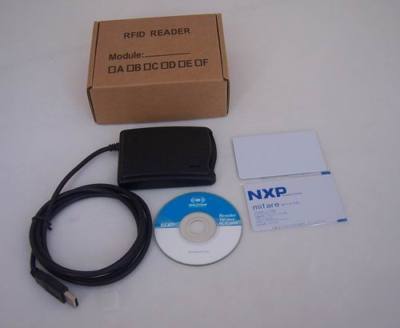

1 x Rfid Reader/Writer with USB Cable YHY632AU
SDK (C#, VB , Java & Delphi - demo program and source code)
Demo program - show how to read and write data from the tag
Source code - speed up software development time
USB to virtual com driver (USB type)
1 x Mifare Rfid Reader/Writer Module YHY522 with SDK
We provide 1 year warranty. If the item is defective, please notify us within 3 days of delivery.
All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
Items returned after 7 days of delivery are only eligible for repair.
