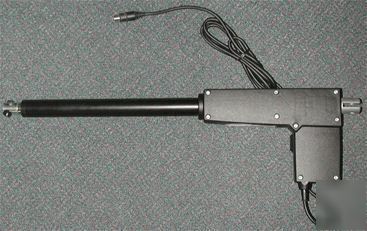

Linak LA31.40BRM-400-24-001 careline actuator
The LA31 Actuator is a very quiet and powerful actuator designed for a variey of applications such as furniture, care or hospital beds.
Due to its high capacity, design and protection class up to IP 66 and the CARELINE actuator is ideal for the care sector e.g. for beds. The CARELINE LA31 actuator is available as a standard or a Basic version. The standard LA31 actuator features known parts such as piston rod eye with slot. The Basic version is a special cost optimized version, which is compatible with the CB9 Basic control box.
Production Date: 990901 O.C. 62814-400
Power Rating: 24 VDC Max. 5 Amp
Duty Cycle: Max. 10%, 6 min./hour
Pin to Pin Centerline Diameter: 22.5" (Retracted)
* 24 VDC permanent magnet motor
* Thrust up to 6000N in push and up to 4000N in pull
* Electric chromated steel piston rod eye with slot
* Duty cycle: max. 10% or 2 minutes continuous use followed by 18 minutes not in use
* Ambient temperature +5 degrees C to +40 degrees C
* High-strength plastic housing protects motor and gears
* Elegant and compact design with small installation dimensions
* Standard protection class: IP 54
* LIN 4 Pin Connector with 8' Cable
* Built-in limit switches (not adjustable)
* Scratch and wear-resistant powder painting on out tube 30mm
* Strong wear and corrosion resistant stainless steel inner tube
* Noise level 45 dB (A); measuring method DS/EN ISO 3746, actuator not loaded.
* Has full compliance with EN 60601-1
