> Ace glass 2600ML & 1200 instatherm oil bath
Ace glass 2600ML & 1200 instatherm oil bath
Ace Glass 2600ml & 1200ml 9601 Instatherm Oil Bath, Low Form
Low form glass vessels heated by Instatherm an integral noble metal alloy fused perma- nently to the glass and covered with a tough silicone rubber treated glass cloth insulation which serves as a thermal barrier as well as protection against physical shock. Heat response is rapid and thermal lag low typical heating rates are approximately 5 per minute. Designed to operate up to 250 C.
Magnetic stirrers operate efficiently with these units. Baths are fitted with permanently attached stainless steel banana type connections. For use with all ACE Proportional Temperature Controllers (not included) to get precise, accurate and safe heating since the output voltage is automatically limited. May also be controlled manually with 12080-10 Auto Transformer, (Not included)however, care must be taken not to exceed the maximum voltage rating of the individual bath. Never operate dry; be certain that heat exchange medium is in bath before applying current.

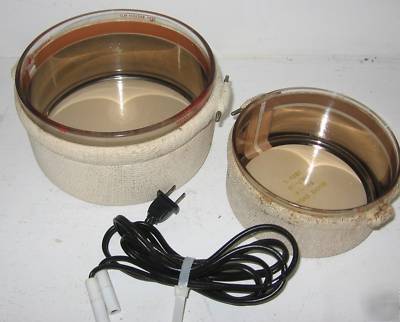

Offered unit consist of one 2600ml bath , one 1200 bath and one power cord
Size,190mm x 100mm Capacity 2600mL Volt/Amp rating 120/10
