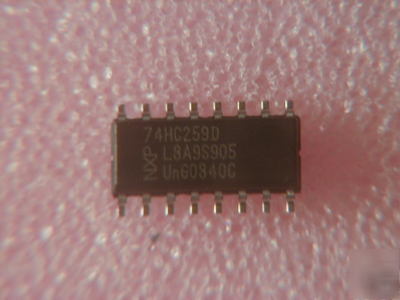

Qty 10 * 74HC259 74HC259D 8-bit adressable latch smd 16
The 74HC259; 74HCT259 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard No. 7-A. The 74HC259; 74HCT259 are high-speed 8-bit addressable latches designed for general purpose storage applications in digital systems. They are multifunctional devices capable of storing single-line data in eight addressable latches and providing a 3-to-8 decoder and multiplexer function with active HIGH outputs (Q0 to Q7). They also incorporates an active LOW common reset (MR) for resetting all latches as well as an active LOW enable input
The 74HC259; 74HCT259 has four modes of operation:
Addressable latch mode, in this mode data on the data line (D) is written into the addressed latch. The addressed latch will follow the data input with all non-addressed latches remaining in their previous states.
Memory mode, in this mode all latches remain in their previous states and are unaffected by the data or address inputs.
Demultiplexing mode (or 3-to-8 decoding), in this mode the addressed output follows the state of the data input (D) with all other outputs in the LOW state.
Reset mode, in this mode all outputs are LOW and unaffected by the address inputs (A0 to A2) and data input (D).
When operating the 74HC259; 74HCT259 as an address latch, changing more than one address bit could impose a transient wrong address. Therefore, this should only be done while in the Memory mode.
Combined demultiplexer and 8-bit latch
Output from each storage bit available
Random (addressable) data entry
Useful as a 3-to-8 active HIGH decoder
